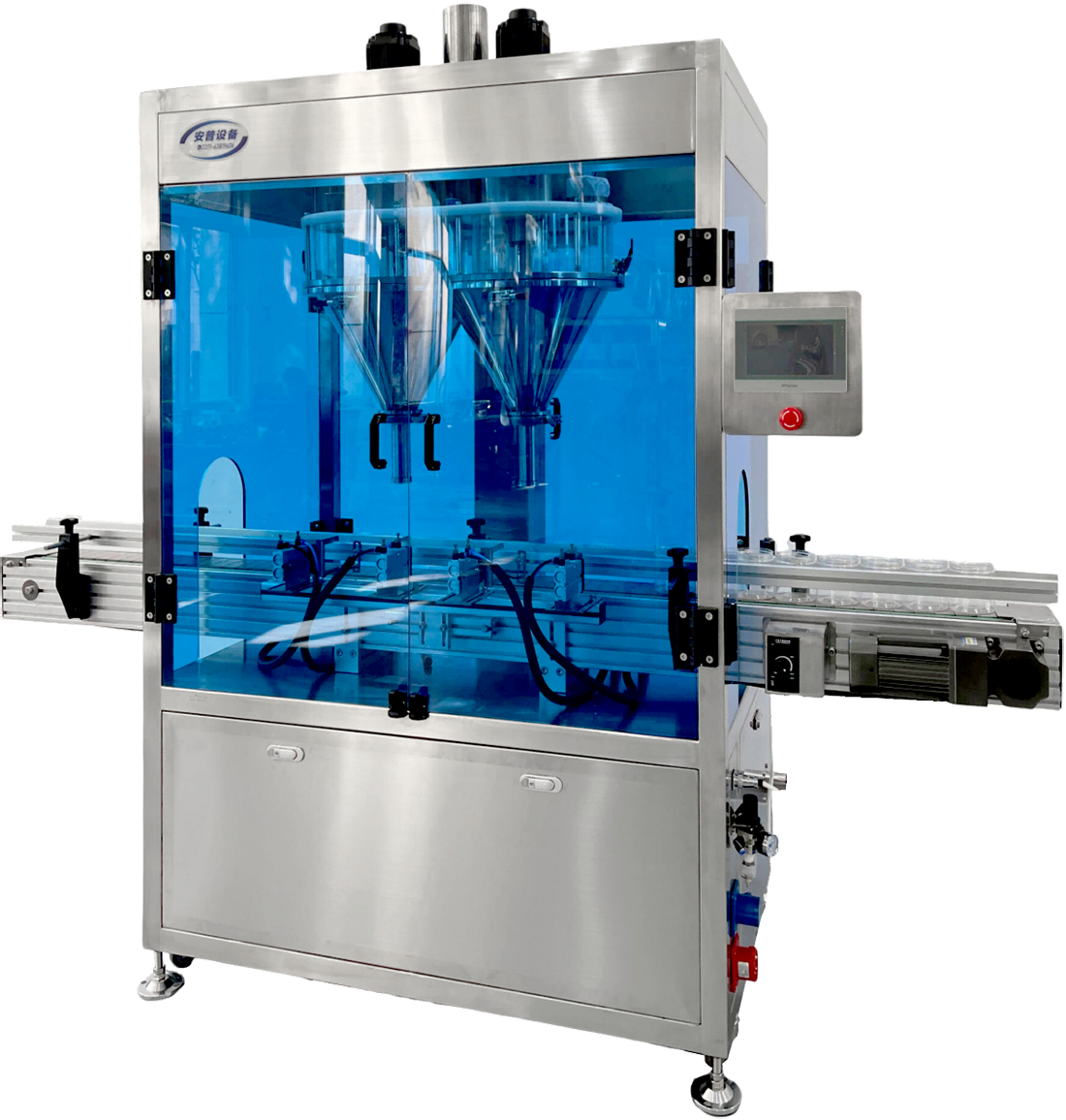

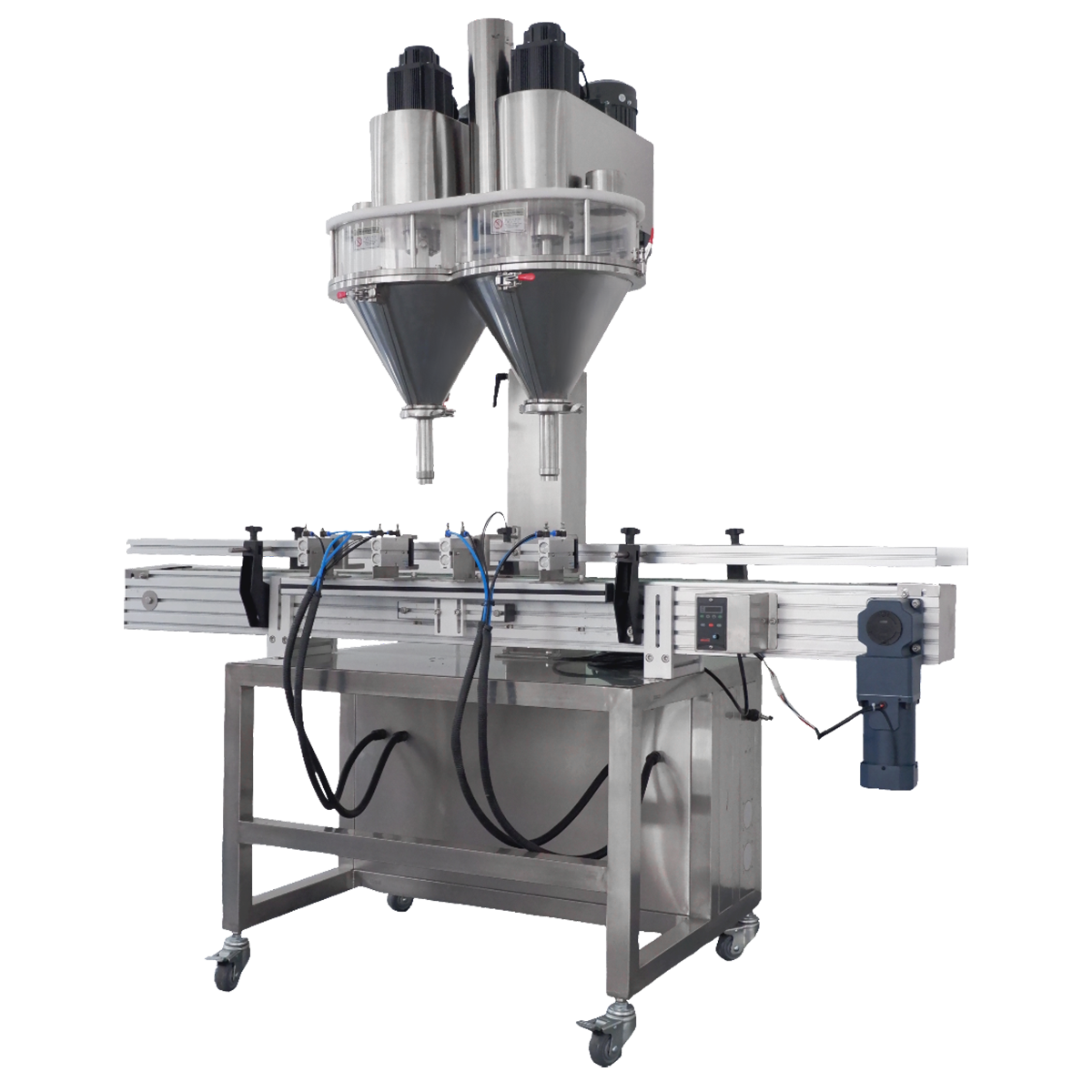

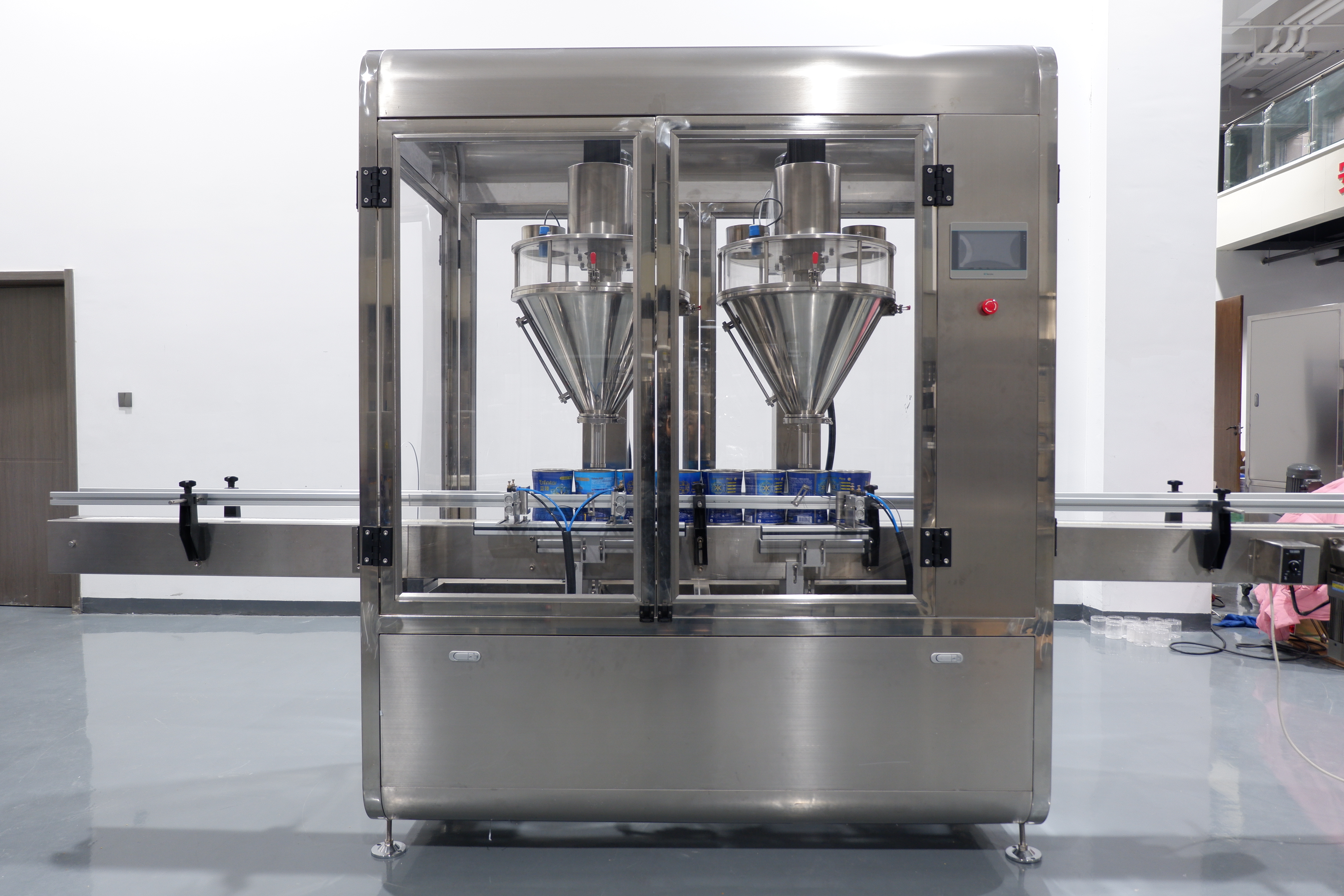

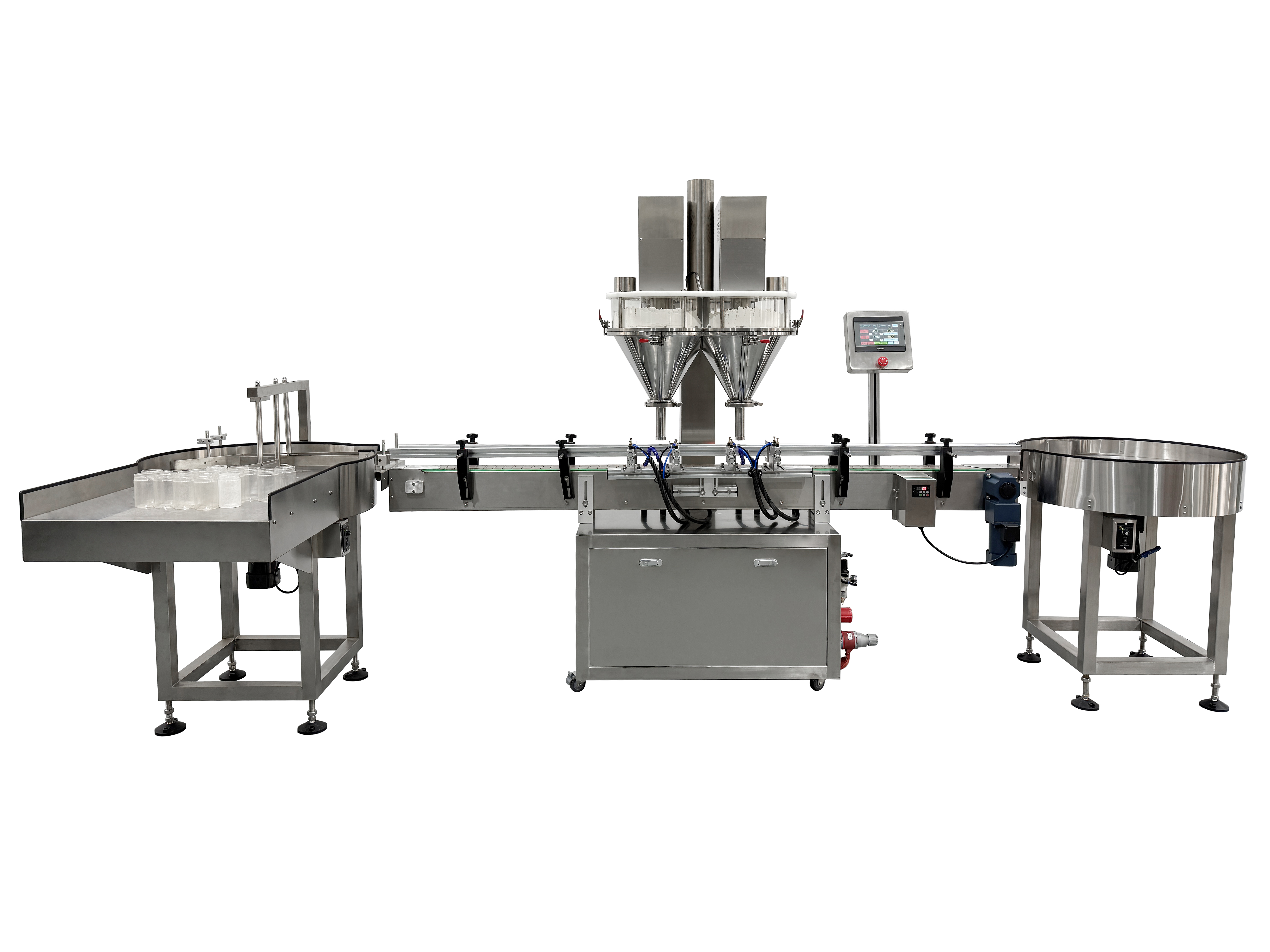

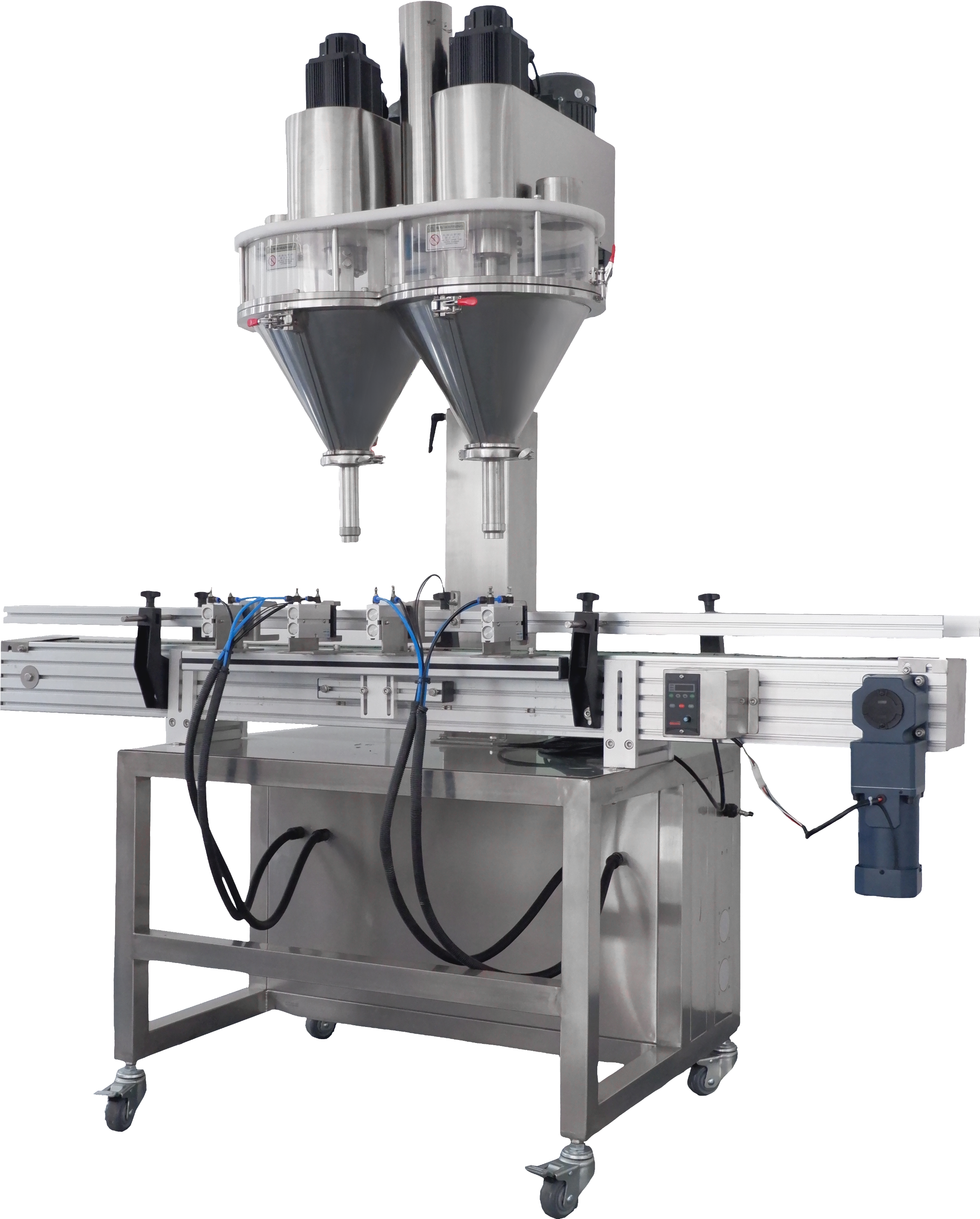

APG-02BDouble Head Powder Filling Machine

Technical Parameters

Model

Volume

Weighing

Packing Weight

10g-1000g

(Depend on materials)

10-5000g

(Depend on materials)

Packing Speed

15-35 (bottles/min)

5-20 (bottles/min)

Packing Accuracy

≤1%

Power

2kw

Air Pressure

5-8kg/cm2


Detailed Introduction

Advantages and Characteristics

1、 Automatic positioning, filling and metering of bottles can be realized.

2、 Vibration device can be added to conveyor belt to ensure uniform filling of materials.

3、 The hopper can be fully opened, convenient to disassemble and clean.

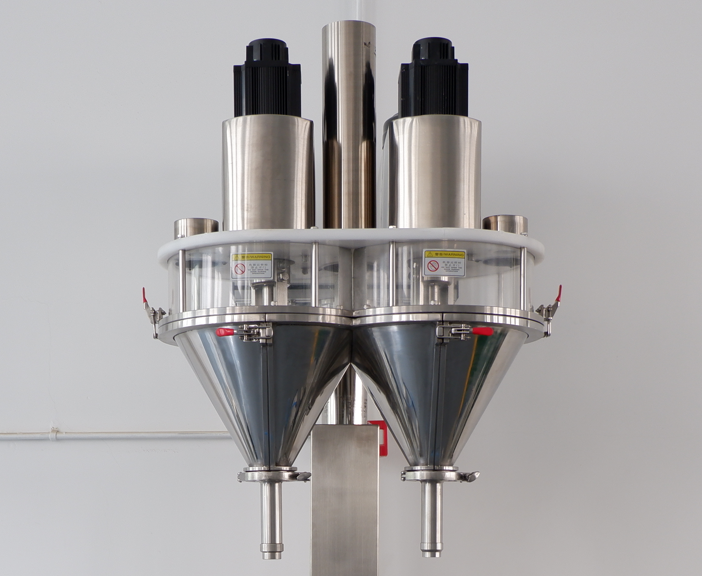

4、 The servo motor is used to drive the screw, which is not easy to wear, accurate positioning, adjustable speed, stable performance, etc.

5、 PLC control system is adopted, which has the advantages of stable operation, anti-interference, and high weighing accuracy.

6、 All 304 stainless steels, all quick clamp connections, easy installation.

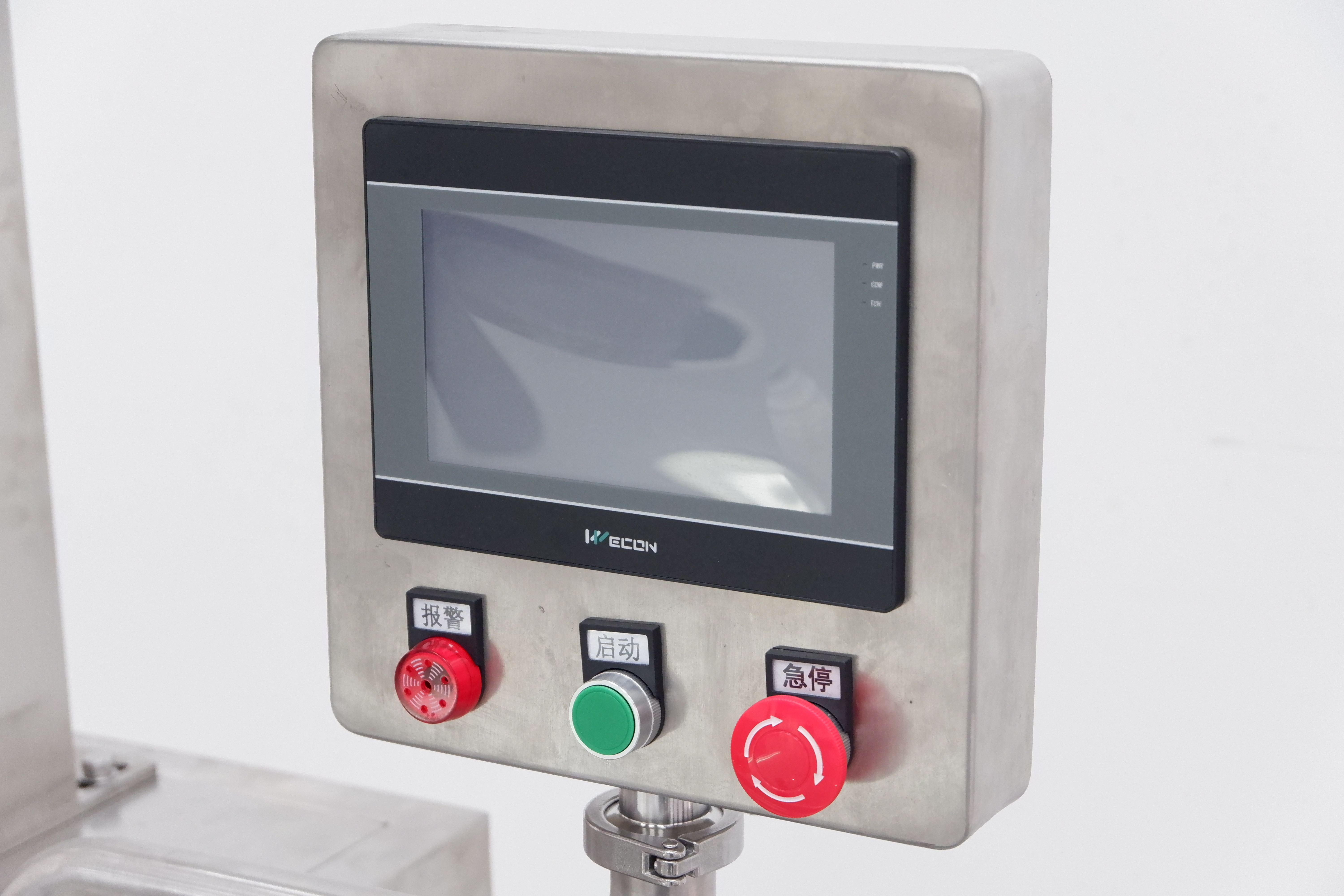

7、 The touch screen clearly displays each working status, operation instructions, fault status and production statistics, etc., and the operation is simple and intuitive.

8、 The screw accessories can be replaced, which can be used for a variety of materials from ultra-fine powder to small particles.

9、 High-precision processing, perfect mechanical structure, high concentricity of each component, high operating efficiency, and less wear.

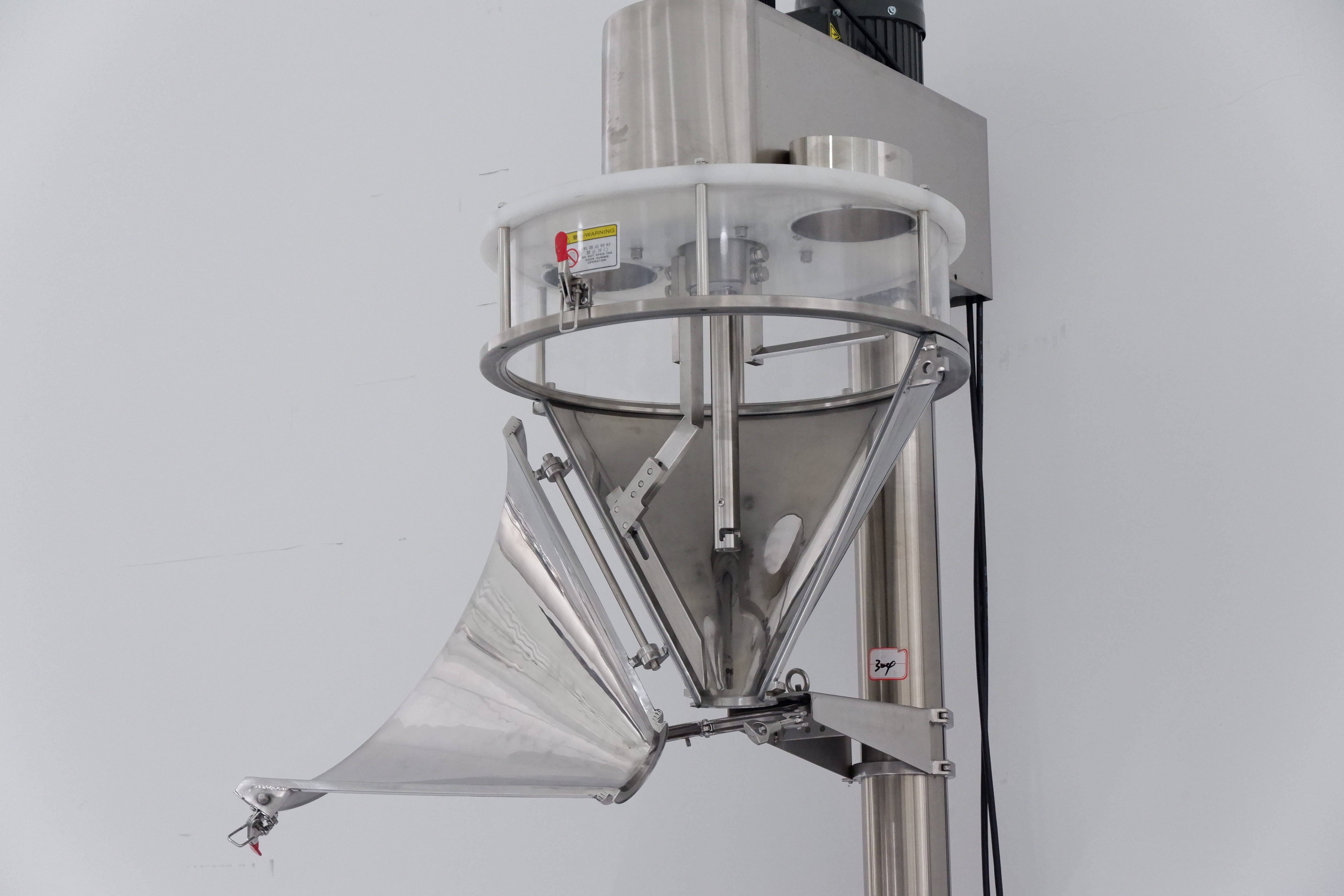

10、 The silo can be fully opened, and the status of the internal components of the silo is clear at a glance:

    1) Convenient to adjust the position between the agitator and screw.

    2) Convenient maintenance and inspection of various components.

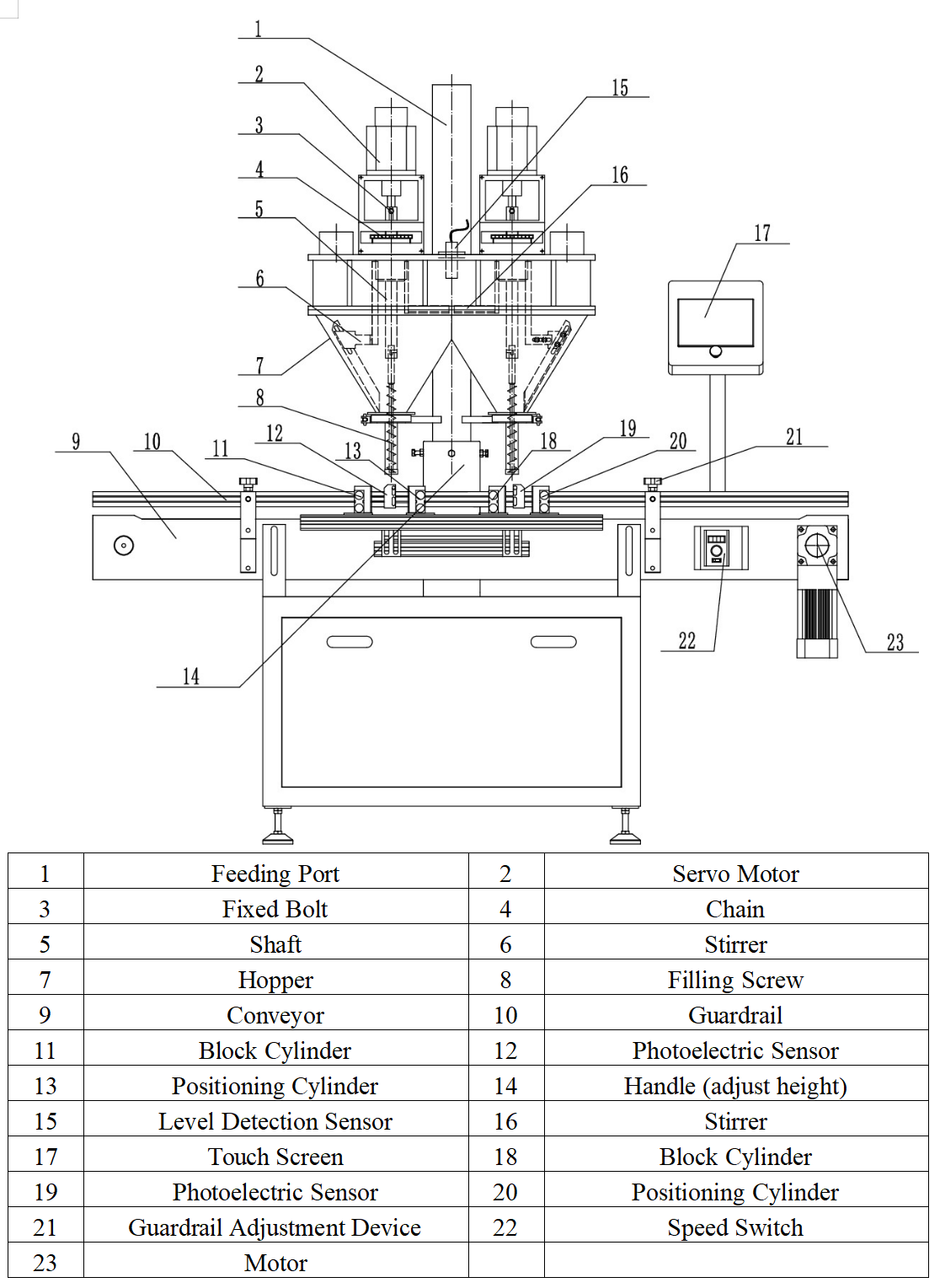

Structure Diagram

APG-02BDouble Head Powder Filling Machine

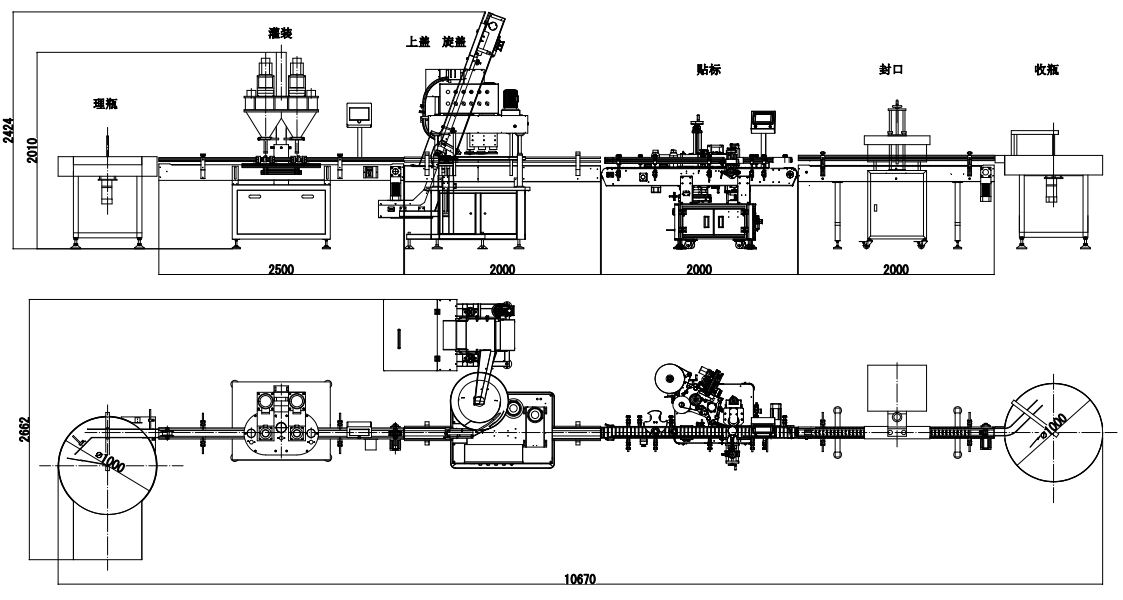

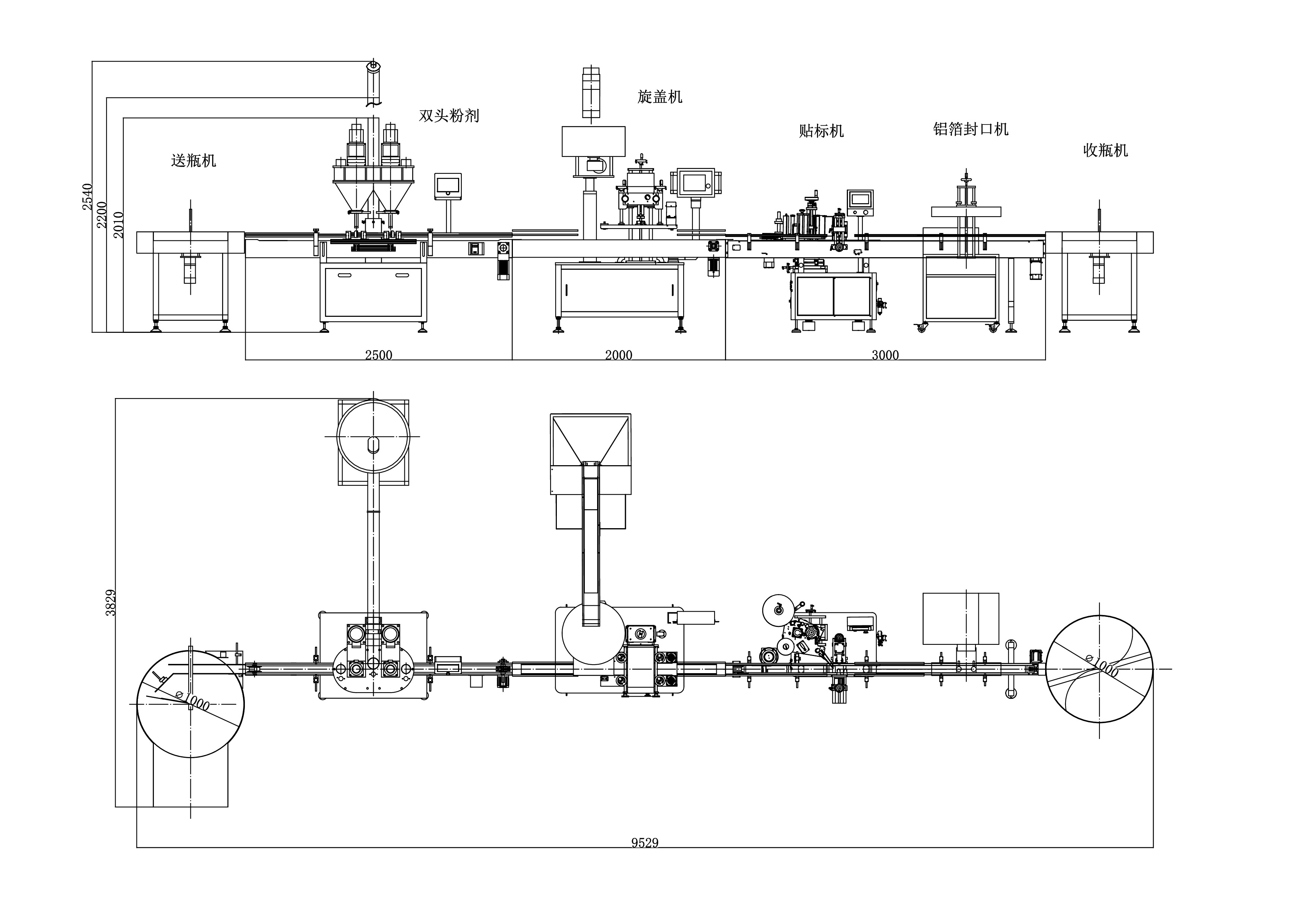

Dimension Diagram

APG-02BDouble Head Powder Filling Machine

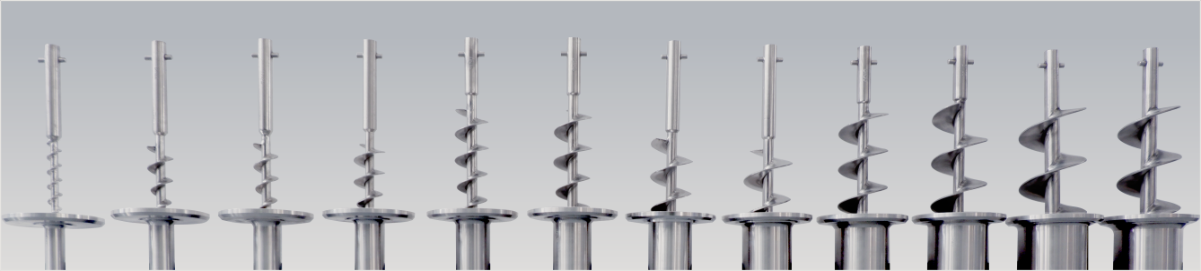

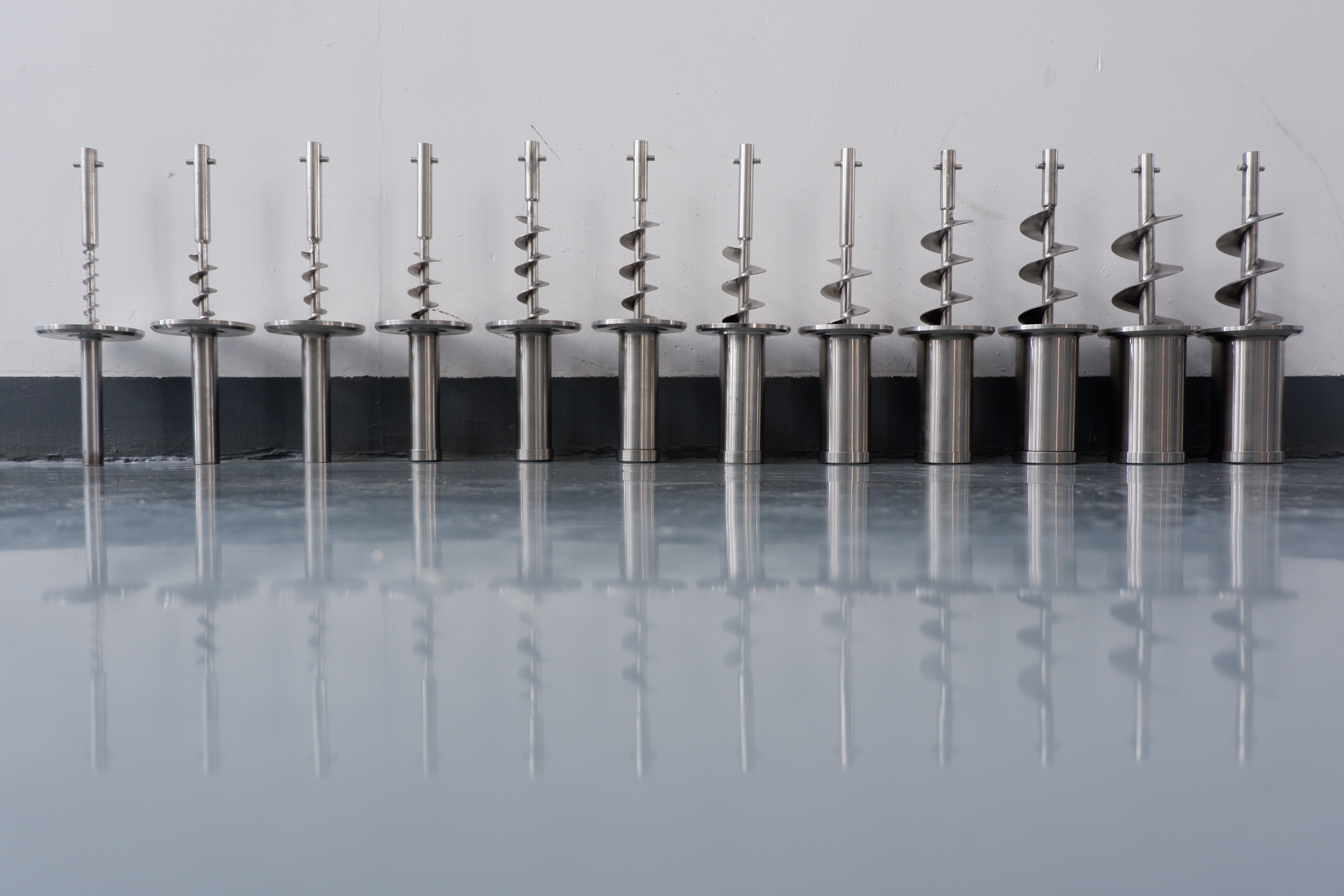

Additional Accessories


图片 6.png

Screw Diameter

(mm)

Cup Diameter

(mm)

Leak-Proof Diameter

(mm)

Range

17

21

/

5g-30g

22

26

/

20g-50g

28

32

/

30g-100g

34

39

41

50g-200g

38

43

45

100g-300g

45

50

52

200g-500g

50

55

57

300g-1kg

55

60

62

500g-2kg

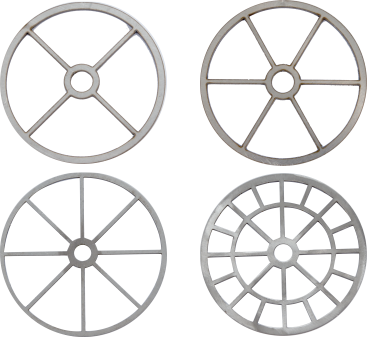

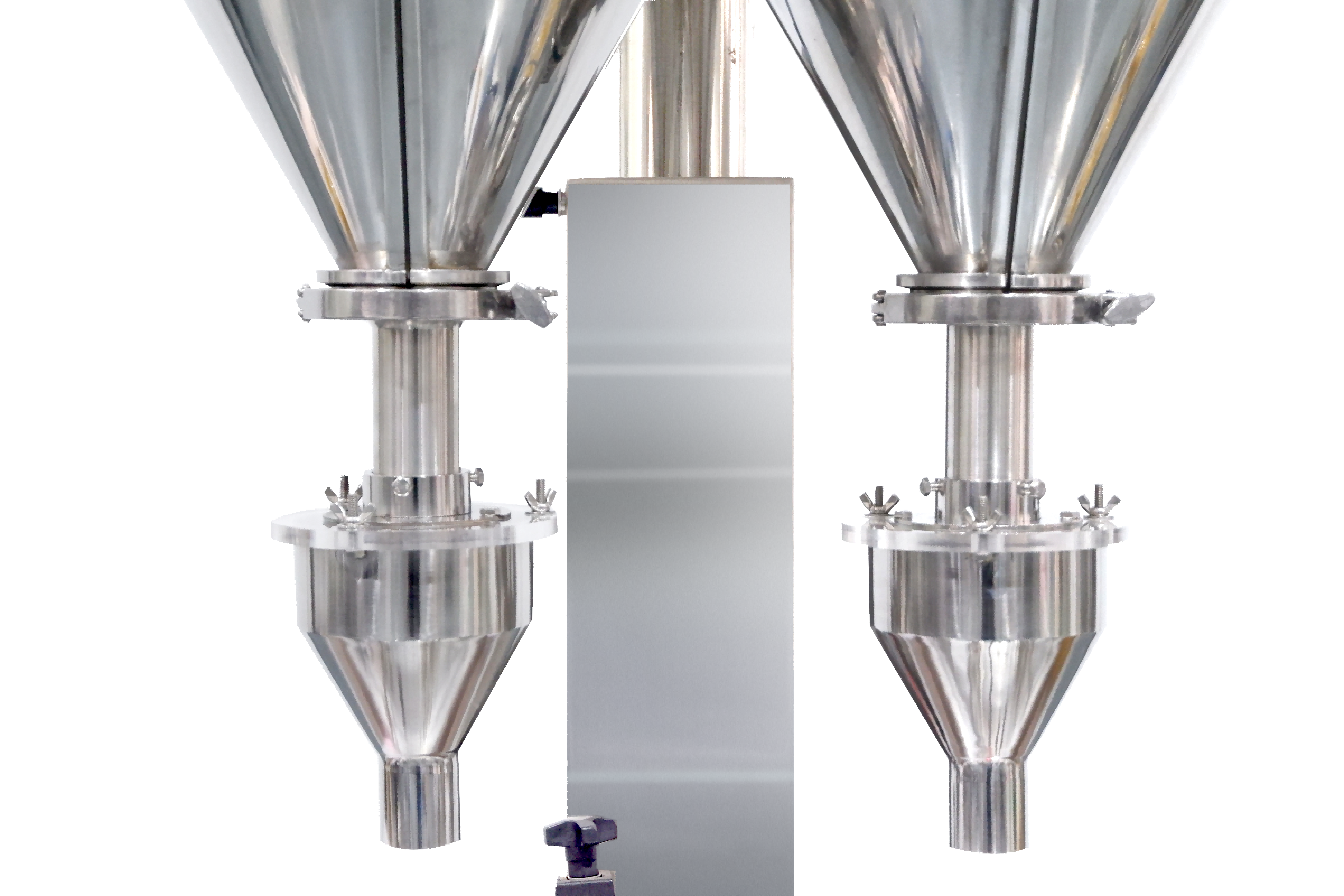

Leakage Prevention Device

Pressure Plate





Stop Valve

Cylinder Device





Dust Collecting Cover

Centrifugal Leakage Prevention
