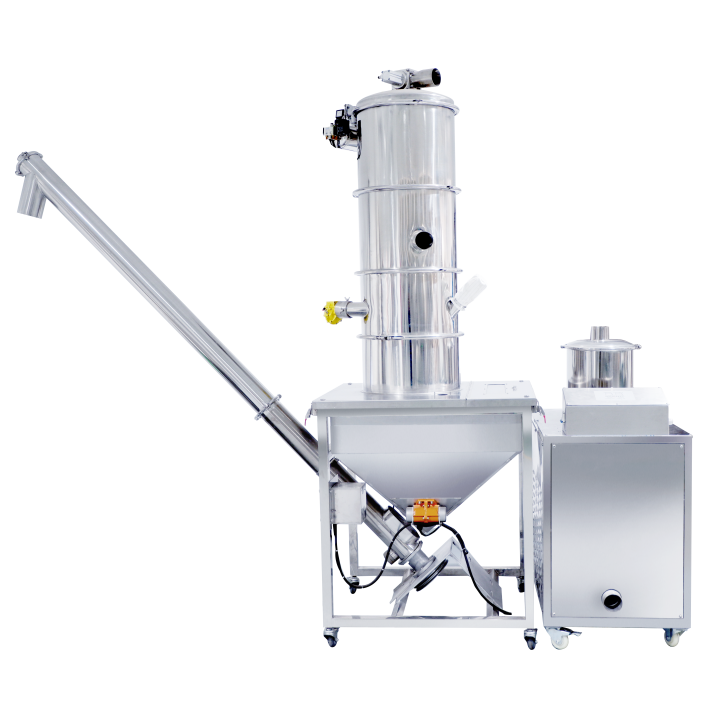

Vacuum Feeding Machine(with Silo)

Technical Parameters

Transport power

Geared motor

Speed

1500-2000kg/h

Silo volume

120L-200L

Voltage

AC380V\220V\110V

Power

1.5kw

Machine weight

150kg

Screw length

2310mm

Pipe diameter

108mm

Screw height

1600mm

Silo height

900mm

Dimensions(L×W×H)

2560×920×1900mm

(The above are standard sizes,all parameters can be customized)


Detailed Introduction

Advantages and Characteristics

1.Vibrating  transfer  from  the  silo  to  the  bucket,less  overflow;vibration  regulator  has  automatic  voltage stabilization    function.

2.The delivery can be adjusted;it automatically starts and stops with level control

3.An anti-reversal device is provided to prevent the material from sliding.



Structure Diagram

Vacuum Feeding Machine(with Silo)

Dimension Diagram

Vacuum Feeding Machine(with Silo)

Additional Accessories
