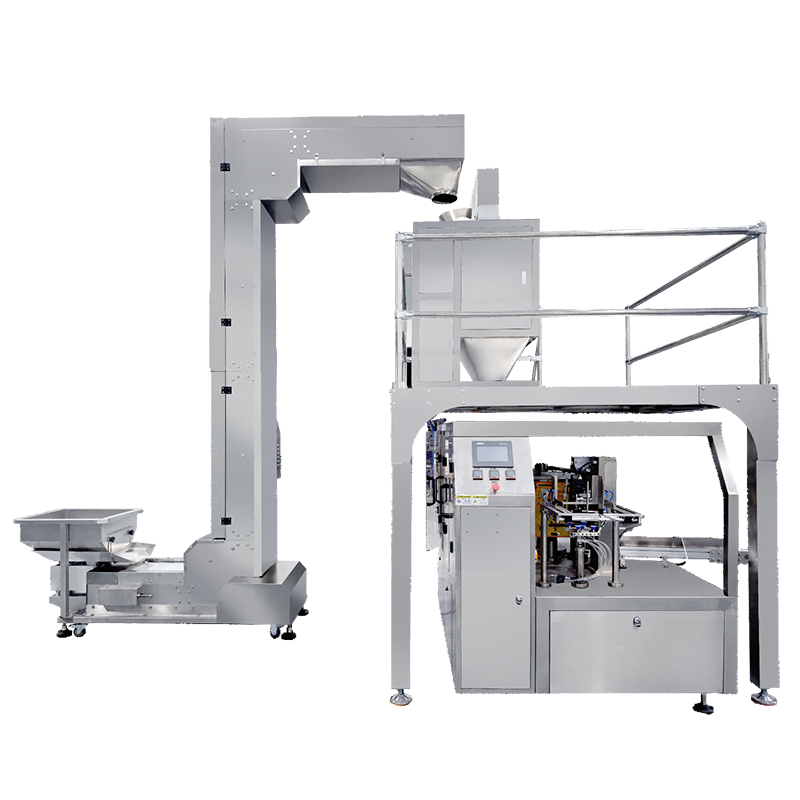

8-station Bag Packing Machine

Technical Parameters

Bag Width	80-250mm	180-300mm
Bag Length	80-400mm	120-500mm
Packing Size	10-2000g (depending on materials)
Packing Speed	20-55bags/min (depending on materials)
Power	3.75kw
Machine Weight	1400kg

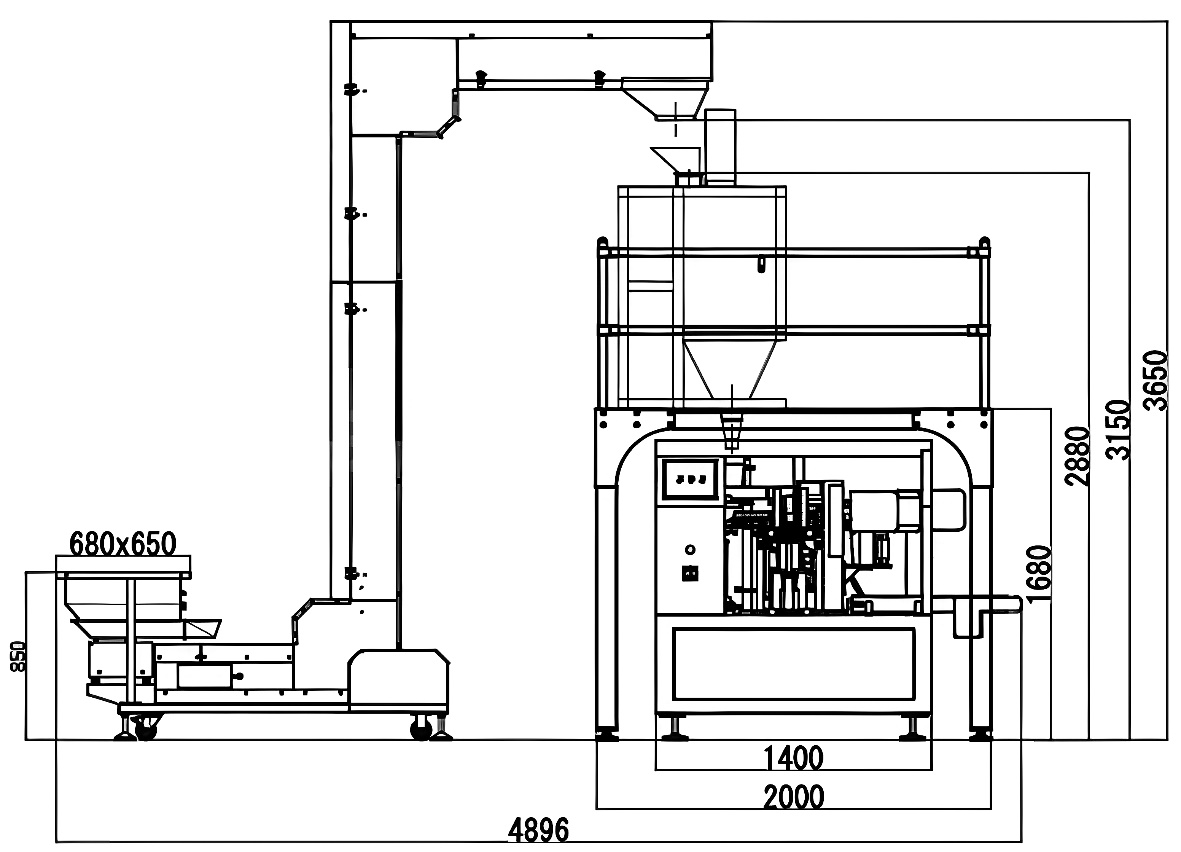

Dimension	1700×1400×1500

leave a message >

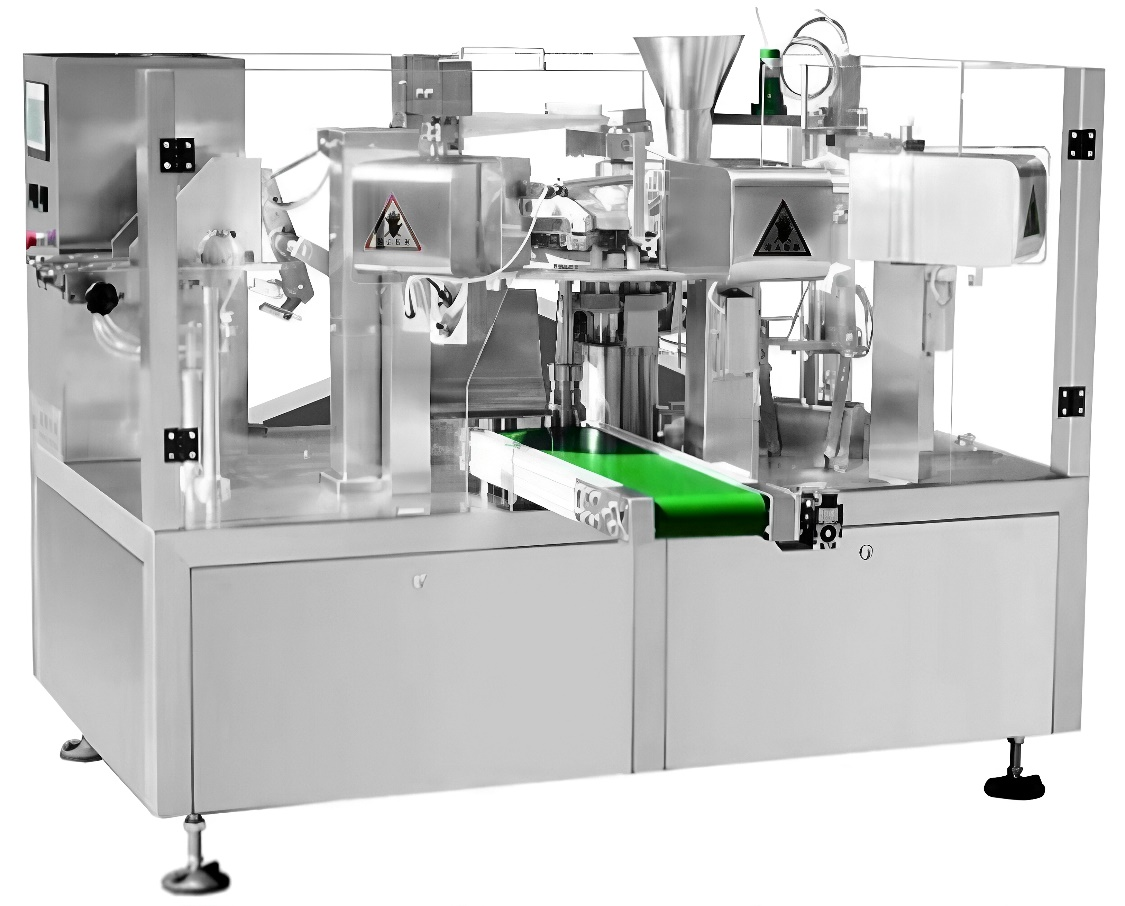

Detailed Introduction

Application:

1. Prefabricated bag type

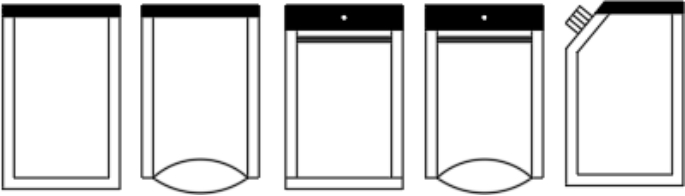

Suitable for different requirements of PE, PET, AL, CPP and other materials of prefabricated bags. Such as flat bag, self-supporting bag, zipper bag, suction mouth bag, organ bag, etc.

2. Materials type

According to different packing materials can choose different counting and filling devices, can pack a variety of materials, such as particles, powders, liquids and so on. Powder categories: milk powder, spices, cocoa, pesticides, veterinary drugs, washing powder, flour, etc.

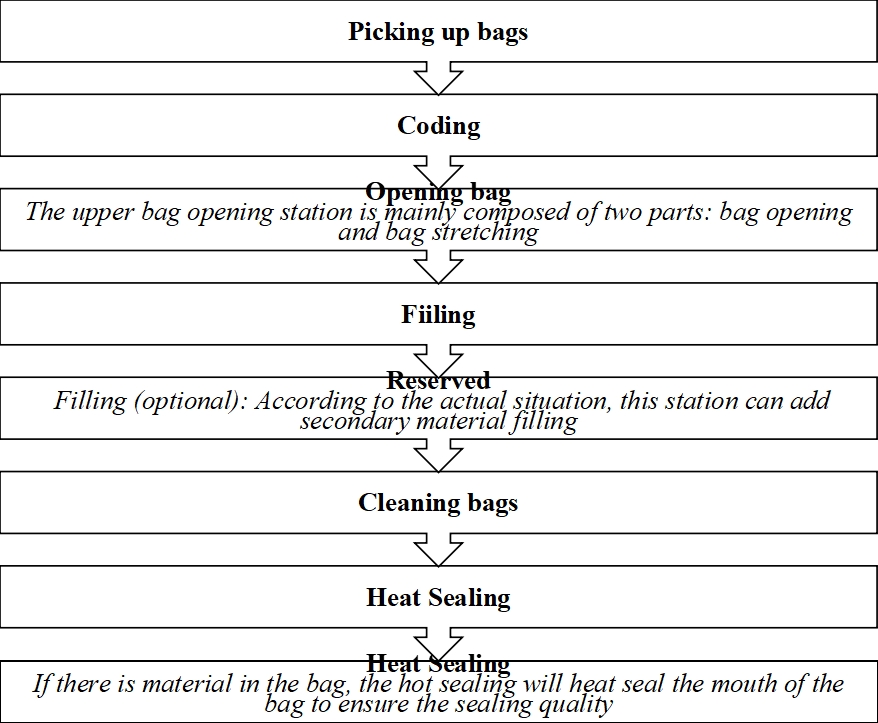

Working Process:

Main Accessories:

No.	Name	Model	Brand	Origin
1	Touch Screen	SMART 700 IEV3	Siemens	German
2	PLC	SIMATIC S7-200 SMART	Siemens	German
3	Frequency Converter	FRN0005C2S-4C	FUJI	Japan
4	Main Motor	YE2-90S-4	XINLING	China
5	Splitter	DS83-6L-120	ZHONGLI	China
6	Solenoid Valve	SY5120	AirTAC	Taiwan
7	Picking up Cylinder	C85N16-20	SMC	Japan
8	Heat Sealing Cylinder	ACQ50X30B	AirTAC	Taiwan
9	Lower Vibration Cylinder	MG32X75	AirTAC	Taiwan
10	Blow Valve	VQ21A1-5G-C8	SMC	Japan
11	Lower Bag Opening Cylinder	HFT16X80S	AirTAC	Taiwan
12	Barrel Cylinder	MG32X75	AirTAC	Taiwan
13	Vacuum Valve	VUVS-L30-M32C	FESTO	German
14	Vacuum Filter	AF2000-WZ148A	AirTAC	Taiwan
15	Barometer	DPSN1-10020	AirTAC	Taiwan
16	Proximity Sensor	TL-W5MC1	Omron	Japan
17	Conveyor Motor	5RK90GN-C	MAILI	China
18	Temperature Controller	NBG-3400V	AISET	China
19	Linear Bearings	/	IGUS	German
20	Hopper Cylinder	MA25X25SCA	AirTAC	Taiwan
21	Air Source Combination	GFR30008AN	AirTAC	Taiwan
22	Proximity Switches	PRE-12-4DN	Autonics	Korea
23	Encoder	E40S-360-3-N-E	Autonics	Korea
24	Phase Sequence	KBDS	Omron	Japan
25	AC Contactor	SC-E04P	FUJI	Japan
26	Air Switch	BC63E1CG C16	FUJI	Japan
27	Relay	MY2NJ（DC24V）	Omron	Japan
28	Power Switch	MPS-050W24VFS	Miboi	Taiwan
29	Zipper Bag Cylinder	MI12X10CA	AirTAC	Taiwan
30	Motor	57BYG250D1	AirTAC	Taiwan

Advantages and Characteristics

1. Automatic bag packaging machine to replace the traditional manual packaging, to achieve the automation of enterprise product packaging production, improve enterprise production efficiency, greatly reduce the cost of products.

2. The machine meets the hygienic standards of food processing machinery. GMP standard for veterinary medicine machinery. Parts and components in contact with materials and packaging bags on the machine are processed with materials that meet the hygiene requirements of food and drugs to ensure the hygiene and safety of food and drugs.

3. The packing range of the machine is wide. For multilayer composite film, single-layer PE, PP made of prefabricated bags, paper bags can be used. The finished packaging bag pattern is perfect, the sealing quality is good and the grade is high.

4. Gas control system adopts advanced PLC, with color Siemens touch screen, man-machine interface is friendly, easy to operate. Can quickly and easily adjust the width of the rack, packaging speed and other parameters.

5. The main motor is controlled by frequency conversion, and the frequency can be set freely in a certain range on the color touch screen according to actual needs.

6. The machine is equipped with an automatic detection device, which can detect the failure of air pressure, temperature controller, bag on the machine, bag mouth or not open. It can judge the state of the machine, control whether the machine is coded, whether the filling device is filled, and whether the hot sealing device is sealed, so as to avoid the waste of packaging materials and raw materials and greatly save the cost.

7. The machine mechanical structure design is compact, the transmission system layout is reasonable, easy maintenance.

8. Pure mechanical linkage, machine clamp hidden spring type, equipment mature and stable.

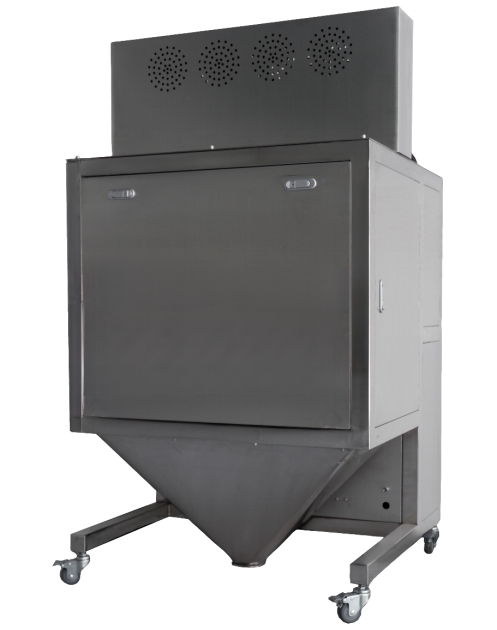

Additional Accessories

Overview:

This machine is suitable for quantitative packaging of small particle materials and can be widely used in food, veterinary drugs, pesticides, additives and other industries.

Performance characteristics:

1. Strong stability: The measurement is not affected by voltage fluctuations and the height of the material level, and is especially suitable for the high-precision filling needs of small particles.

2. High precision: The motor is used to drive the filling, which is not affected by voltage fluctuations. Compared with the traditional vibration filling device, it is more uniform and accurate, especially for the measurement of small grams, the accuracy can be controlled within 1 gram.

3. It adopts industrial-grade PLC control system and weighing module, which is stable and reliable.

4. Equipped with a color Chinese touch screen, the operation is simple and easy to understand.

5. Each weighing bucket has three levels of feeding (fast, medium, slow), and the set weight can be adjusted directly on the touch screen: the principle is to adjust the filling speed (fast, medium, slow) by adjusting the speed of the stepper motor.

6. The patented centrifugal bucket particle feeding device is used, which will not cause any damage to the particle appearance (even very fine materials can be used).

7. Feeding method: gravity feeding.

8. Measuring method: electronic weighing and measuring, with small precision error.

9. Power for opening the weighing bucket door: permanent magnet synchronous motor

10. The four filling heads can be adjusted to achieve bottle filling.

Parameters:

Packing Weight	5g-2000g (can be customized)
Packing Speed	10-45 bags/min (depending on packing weight)
Packing Accuracy	0.5-2g (depending on packing weight)
Power	4Kw
